Primary GUI class. Most other classes inherit from this class. More...

#include <gui_element.h>

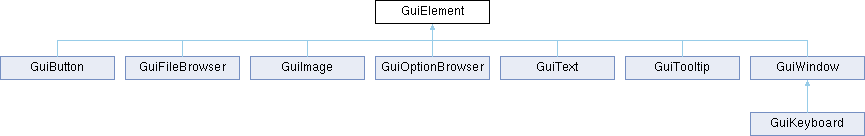

Inheritance diagram for GuiElement:

Public Member Functions
	GuiElement ()
	Constructor. More...

virtual	~GuiElement ()
	Destructor. More...

void	SetParent (GuiElement *e)

GuiElement *	GetParent ()

int	GetLeft ()

int	GetTop ()

void	SetMinY (int y)

int	GetMinY ()

void	SetMaxY (int y)

int	GetMaxY ()

void	SetMinX (int x)

int	GetMinX ()

void	SetMaxX (int x)

int	GetMaxX ()

int	GetWidth ()

int	GetHeight ()

void	SetSize (int w, int h)

bool	IsVisible ()

bool	IsSelectable ()

bool	IsClickable ()

bool	IsHoldable ()

void	SetSelectable (bool s)

void	SetClickable (bool c)

void	SetHoldable (bool h)

STATE	GetState ()

int	GetStateChan ()

void	SetAlpha (int a)

int	GetAlpha ()

void	SetScale (float s)

void	SetScaleX (float s)

void	SetScaleY (float s)

void	SetScale (int w, int h)

float	GetScale ()

float	GetScaleX ()

float	GetScaleY ()

void	SetTrigger (GuiTrigger *t)

void	SetTrigger (u8 i, GuiTrigger *t)

bool	Rumble ()

void	SetRumble (bool r)

void	SetEffect (int e, int a, int t=0)

void	SetEffectOnOver (int e, int a, int t=0)

void	SetEffectGrow ()
	Shortcut to SetEffectOnOver(EFFECT_SCALE, 4, 110)

int	GetEffect ()

bool	IsInside (int x, int y)

void	SetPosition (int x, int y)

void	UpdateEffects ()

void	SetUpdateCallback (UpdateCallback u)

int	IsFocused ()

virtual void	SetVisible (bool v)

virtual void	SetFocus (int f)

virtual void	SetState (STATE s, int c=-1)

virtual void	ResetState ()
	Resets the element's state to STATE::DEFAULT. More...

virtual int	GetSelected ()

virtual void	SetAlignment (ALIGN_H hor, ALIGN_V vert)

virtual void	ResetText ()
	Called when the language has changed, to obtain new text values for all text elements. More...

virtual void	Update (GuiTrigger *t)

virtual void	Draw ()=0
	Called constantly to redraw the element. More...

virtual void	DrawTooltip ()
	Called constantly to redraw the element's tooltip. More...

Protected Attributes
GuiTrigger *	trigger [MAX_TRIGGERS]
	GuiTriggers (input actions) that this element responds to.

UpdateCallback	updateCB
	Callback function to call when this element is updated.

GuiElement *	parentElement
	Parent element.

int	focus
	Element focus (-1 = focus disabled, 0 = not focused, 1 = focused)

int	width
	Element width.

int	height
	Element height.

int	xoffset
	Element X offset.

int	yoffset
	Element Y offset.

int	ymin
	Element's min Y offset allowed.

int	ymax
	Element's max Y offset allowed.

int	xmin
	Element's min X offset allowed.

int	xmax
	Element's max X offset allowed.

int	xoffsetDyn
	Element X offset, dynamic (added to xoffset value for animation effects)

int	yoffsetDyn
	Element Y offset, dynamic (added to yoffset value for animation effects)

int	alpha
	Element alpha value (0-255)

int	alphaDyn
	Element alpha, dynamic (multiplied by alpha value for blending/fading effects)

f32	xscale
	Element X scale (1 = 100%)

f32	yscale
	Element Y scale (1 = 100%)

f32	scaleDyn
	Element scale, dynamic (multiplied by alpha value for blending/fading effects)

int	effects
	Currently enabled effect(s). 0 when no effects are enabled.

int	effectAmount
	Effect amount. Used by different effects for different purposes.

int	effectTarget
	Effect target amount. Used by different effects for different purposes.

int	effectsOver
	Effects to enable when wiimote cursor is over this element. Copied to effects variable on over event.

int	effectAmountOver
	EffectAmount to set when wiimote cursor is over this element.

int	effectTargetOver
	EffectTarget to set when wiimote cursor is over this element.

ALIGN_H	alignmentHor
	Horizontal element alignment, respective to parent element (LEFT, RIGHT, CENTRE)

ALIGN_V	alignmentVert
	Horizontal element alignment, respective to parent element (TOP, BOTTOM, MIDDLE)

STATE	state
	Element state (DEFAULT, SELECTED, CLICKED, DISABLED)

int	stateChan
	Which controller channel is responsible for the last change in state.

bool	selectable
	Whether or not this element selectable (can change to SELECTED state)

bool	clickable
	Whether or not this element is clickable (can change to CLICKED state)

bool	holdable
	Whether or not this element is holdable (can change to HELD state)

bool	visible
	Visibility of the element. If false, Draw() is skipped.

bool	rumble
	Wiimote rumble (on/off) - set to on when this element requests a rumble event.

Detailed Description

Primary GUI class. Most other classes inherit from this class.

Constructor & Destructor Documentation

◆ GuiElement()

GuiElement::GuiElement ( )

Constructor.

Constructor for the Object class.

◆ ~GuiElement()

GuiElement::~GuiElement ( )

virtual

Destructor.

Destructor for the GuiElement class.

Member Function Documentation

◆ Draw()

virtual void GuiElement::Draw ( )

pure virtual

Called constantly to redraw the element.

Implemented in GuiButton, GuiFileBrowser, GuiImage, GuiOptionBrowser, GuiText, and GuiWindow.

◆ DrawTooltip()

void GuiElement::DrawTooltip ( )

virtual

Called constantly to redraw the element's tooltip.

Reimplemented in GuiButton, GuiTooltip, and GuiWindow.

◆ GetAlpha()

int GuiElement::GetAlpha ( )

Gets the element's alpha value Considers alpha, alphaDyn, and the parent element's GetAlpha() value

Returns: alpha

◆ GetEffect()

int GuiElement::GetEffect ( )

Gets the current element effects

Returns: element effects

◆ GetHeight()

int GuiElement::GetHeight ( )

Gets the height of the element. Does not currently consider the scale

Returns: height

◆ GetLeft()

int GuiElement::GetLeft ( )

Gets the current leftmost coordinate of the element Considers horizontal alignment, x offset, width, and parent element's GetLeft() / GetWidth() values

Returns: left coordinate

◆ GetMaxX()

int GuiElement::GetMaxX ( )

Gets the maximum x offset of the element

Returns: Maximum X offset

◆ GetMaxY()

int GuiElement::GetMaxY ( )

Gets the maximum y offset of the element

Returns: Maximum Y offset

◆ GetMinX()

int GuiElement::GetMinX ( )

Gets the minimum x offset of the element

Returns: Minimum X offset

◆ GetMinY()

int GuiElement::GetMinY ( )

Gets the minimum y offset of the element

Returns: Minimum Y offset

◆ GetParent()

GuiElement * GuiElement::GetParent ( )

Gets the element's parent

Returns: Pointer to parent element

◆ GetScale()

float GuiElement::GetScale ( )

Gets the element's current scale Considers scale, scaleDyn, and the parent element's GetScale() value

◆ GetScaleX()

float GuiElement::GetScaleX ( )

Gets the element's current x scale Considers scale, scaleDyn, and the parent element's GetScale() value

◆ GetScaleY()

float GuiElement::GetScaleY ( )

Gets the element's current y scale Considers scale, scaleDyn, and the parent element's GetScale() value

◆ GetSelected()

int GuiElement::GetSelected ( )

virtual

Gets whether or not the element is in STATE::SELECTED

Returns: true if selected, false otherwise

Reimplemented in GuiWindow.

◆ GetState()

STATE GuiElement::GetState ( )

Gets the element's current state

Returns: state

◆ GetStateChan()

int GuiElement::GetStateChan ( )

Gets the controller channel that last changed the element's state

Returns: Channel number (0-3, -1 = no channel)

◆ GetTop()

int GuiElement::GetTop ( )

Gets the current topmost coordinate of the element Considers vertical alignment, y offset, height, and parent element's GetTop() / GetHeight() values

Returns: top coordinate

◆ GetWidth()

int GuiElement::GetWidth ( )

Gets the current width of the element. Does not currently consider the scale

Returns: width

◆ IsClickable()

bool GuiElement::IsClickable ( )

Checks whether or not the element is clickable

Returns: true if clickable, false otherwise

◆ IsFocused()

int GuiElement::IsFocused ( )

Checks whether the element is in focus

Returns: true if element is in focus, false otherwise

◆ IsHoldable()

bool GuiElement::IsHoldable ( )

Checks whether or not the element is holdable

Returns: true if holdable, false otherwise

◆ IsInside()

bool GuiElement::IsInside	(	int	x,
		int	y
	)

Checks whether the specified coordinates are within the element's boundaries

Parameters

x	X coordinate
y	Y coordinate

Returns: true if contained within, false otherwise

◆ IsSelectable()

bool GuiElement::IsSelectable ( )

Checks whether or not the element is selectable

Returns: true if selectable, false otherwise

◆ IsVisible()

bool GuiElement::IsVisible ( )

Checks whether or not the element is visible

Returns: true if visible, false otherwise

◆ ResetState()

void GuiElement::ResetState ( )

virtual

Resets the element's state to STATE::DEFAULT.

Reimplemented in GuiFileBrowser, GuiOptionBrowser, and GuiWindow.

◆ ResetText()

void GuiElement::ResetText ( )

virtual

Called when the language has changed, to obtain new text values for all text elements.

Reimplemented in GuiButton, GuiOptionBrowser, GuiText, and GuiWindow.

◆ Rumble()

bool GuiElement::Rumble ( )

Checks whether rumble was requested by the element

Returns: true is rumble was requested, false otherwise

◆ SetAlignment()

void GuiElement::SetAlignment	(	ALIGN_H	hor,
		ALIGN_V	vert
	)

virtual

Sets the element's alignment respective to its parent element

Parameters

hor	Horizontal alignment (LEFT, RIGHT, CENTRE)
vert	Vertical alignment (TOP, BOTTOM, MIDDLE)

Reimplemented in GuiText.

◆ SetAlpha()

void GuiElement::SetAlpha ( int a )

Sets the element's alpha value

Parameters

a	alpha value

◆ SetClickable()

void GuiElement::SetClickable ( bool c )

Sets whether or not the element is clickable

Parameters

c Clickable

◆ SetEffect()

void GuiElement::SetEffect	(	int	e,
		int	a,
		int	t = `0`
	)

Set an effect for the element

Parameters

e	Effect to enable
a	Amount of the effect (usage varies on effect)
t	Target amount of the effect (usage varies on effect)

◆ SetEffectOnOver()

void GuiElement::SetEffectOnOver	(	int	e,
		int	a,
		int	t = `0`
	)

Sets an effect to be enabled on wiimote cursor over

Parameters

e	Effect to enable
a	Amount of the effect (usage varies on effect)
t	Target amount of the effect (usage varies on effect)

◆ SetFocus()

void GuiElement::SetFocus ( int f )

virtual

Sets the element's focus

Parameters

f	Focus (true = in focus)

Reimplemented in GuiFileBrowser, GuiOptionBrowser, and GuiWindow.

◆ SetHoldable()

void GuiElement::SetHoldable ( bool h )

Sets whether or not the element is holdable

Parameters

h Holdable

◆ SetMaxX()

void GuiElement::SetMaxX ( int x )

Sets the maximum x offset of the element

Parameters

x X offset

◆ SetMaxY()

void GuiElement::SetMaxY ( int y )

Sets the maximum y offset of the element

Parameters

y Y offset

◆ SetMinX()

void GuiElement::SetMinX ( int x )

Sets the minimum x offset of the element

Parameters

x X offset

◆ SetMinY()

void GuiElement::SetMinY ( int y )

Sets the minimum y offset of the element

Parameters

y Y offset

◆ SetParent()

void GuiElement::SetParent ( GuiElement * e )

Set the element's parent

Parameters

e	Pointer to parent element

◆ SetPosition()

void GuiElement::SetPosition	(	int	x,
		int	y
	)

Sets the element's position

Parameters

x	X coordinate
y	Y coordinate

◆ SetRumble()

void GuiElement::SetRumble ( bool r )

Sets whether or not the element is requesting a rumble event

Parameters

r	true if requesting rumble, false if not

◆ SetScale() [1/2]

void GuiElement::SetScale ( float s )

Sets the element's x and y scale

Parameters

s	scale (1 is 100%)

◆ SetScale() [2/2]

void GuiElement::SetScale	(	int	w,
		int	h
	)

Sets the element's x and y scale, using the provided max width/height

Parameters

w	Maximum width
h	Maximum height

◆ SetScaleX()

void GuiElement::SetScaleX ( float s )

Sets the element's x scale

Parameters

s	scale (1 is 100%)

◆ SetScaleY()

void GuiElement::SetScaleY ( float s )

Sets the element's y scale

Parameters

s	scale (1 is 100%)

◆ SetSelectable()

void GuiElement::SetSelectable ( bool s )

Sets whether or not the element is selectable

Parameters

s	Selectable

◆ SetSize()

void GuiElement::SetSize	(	int	w,
		int	h
	)

Sets the size (width/height) of the element

Parameters

w	Width of element
h	Height of element

◆ SetState()

void GuiElement::SetState	(	STATE	s,
		int	c = `-1`
	)

virtual

Sets the element's state

Parameters

s	State (STATE::DEFAULT, STATE::SELECTED, STATE::CLICKED, STATE::DISABLED)
c	Controller channel (0-3, -1 = none)

◆ SetTrigger() [1/2]

void GuiElement::SetTrigger ( GuiTrigger * t )

Set a new GuiTrigger for the element

Parameters

t	Pointer to GuiTrigger

◆ SetTrigger() [2/2]

void GuiElement::SetTrigger	(	u8	i,
		GuiTrigger *	t
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

i	Index of trigger array to set
t	Pointer to GuiTrigger

◆ SetUpdateCallback()

void GuiElement::SetUpdateCallback ( UpdateCallback u )

Sets a function to called after after Update() Callback function can be used to response to changes in the state of the element, and/or update the element's attributes

◆ SetVisible()

void GuiElement::SetVisible ( bool v )

virtual

Sets the element's visibility

Parameters

v	Visibility (true = visible)

Reimplemented in GuiWindow.

◆ Update()

void GuiElement::Update ( GuiTrigger * t )

virtual

Called constantly to allow the element to respond to the current input data

Parameters

t	Pointer to a GuiTrigger, containing the current input data from PAD/WPAD

Reimplemented in GuiButton, GuiFileBrowser, GuiKeyboard, GuiOptionBrowser, and GuiWindow.

◆ UpdateEffects()

void GuiElement::UpdateEffects ( )

Updates the element's effects (dynamic values) Called by Draw(), used for animation purposes

The documentation for this class was generated from the following files:

source/libwiigui/gui_element.h
source/libwiigui/gui_element.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ GuiElement()

◆ ~GuiElement()

Member Function Documentation

◆ Draw()

◆ DrawTooltip()

◆ GetAlpha()

◆ GetEffect()

◆ GetHeight()

◆ GetLeft()

◆ GetMaxX()

◆ GetMaxY()

◆ GetMinX()

◆ GetMinY()

◆ GetParent()

◆ GetScale()

◆ GetScaleX()

◆ GetScaleY()

◆ GetSelected()

◆ GetState()

◆ GetStateChan()

◆ GetTop()

◆ GetWidth()

◆ IsClickable()

◆ IsFocused()

◆ IsHoldable()

◆ IsInside()

◆ IsSelectable()

◆ IsVisible()

◆ ResetState()

◆ ResetText()

◆ Rumble()

◆ SetAlignment()

◆ SetAlpha()

◆ SetClickable()

◆ SetEffect()

◆ SetEffectOnOver()

◆ SetFocus()

◆ SetHoldable()

◆ SetMaxX()

◆ SetMaxY()

◆ SetMinX()

◆ SetMinY()

◆ SetParent()

◆ SetPosition()

◆ SetRumble()

◆ SetScale() [1/2]

◆ SetScale() [2/2]

◆ SetScaleX()

◆ SetScaleY()

◆ SetSelectable()

◆ SetSize()

◆ SetState()

◆ SetTrigger() [1/2]

◆ SetTrigger() [2/2]

◆ SetUpdateCallback()

◆ SetVisible()

◆ Update()

◆ UpdateEffects()
